Machine Guarding Systems from WireCrafters® are a simple, effective way to protect personnel from the dangers posed by automated equipment. These barriers are a strong and economical solution to plant safety needs. Versatility of this system allows easy integration of access doors or larger openings with system controls.
Machine Guarding also doubles as a safety net by containing malfunctioning equipment. Welded and woven wire mesh is extremely resilient; it resists dings, retains its shape, and is virtually maintenance free.

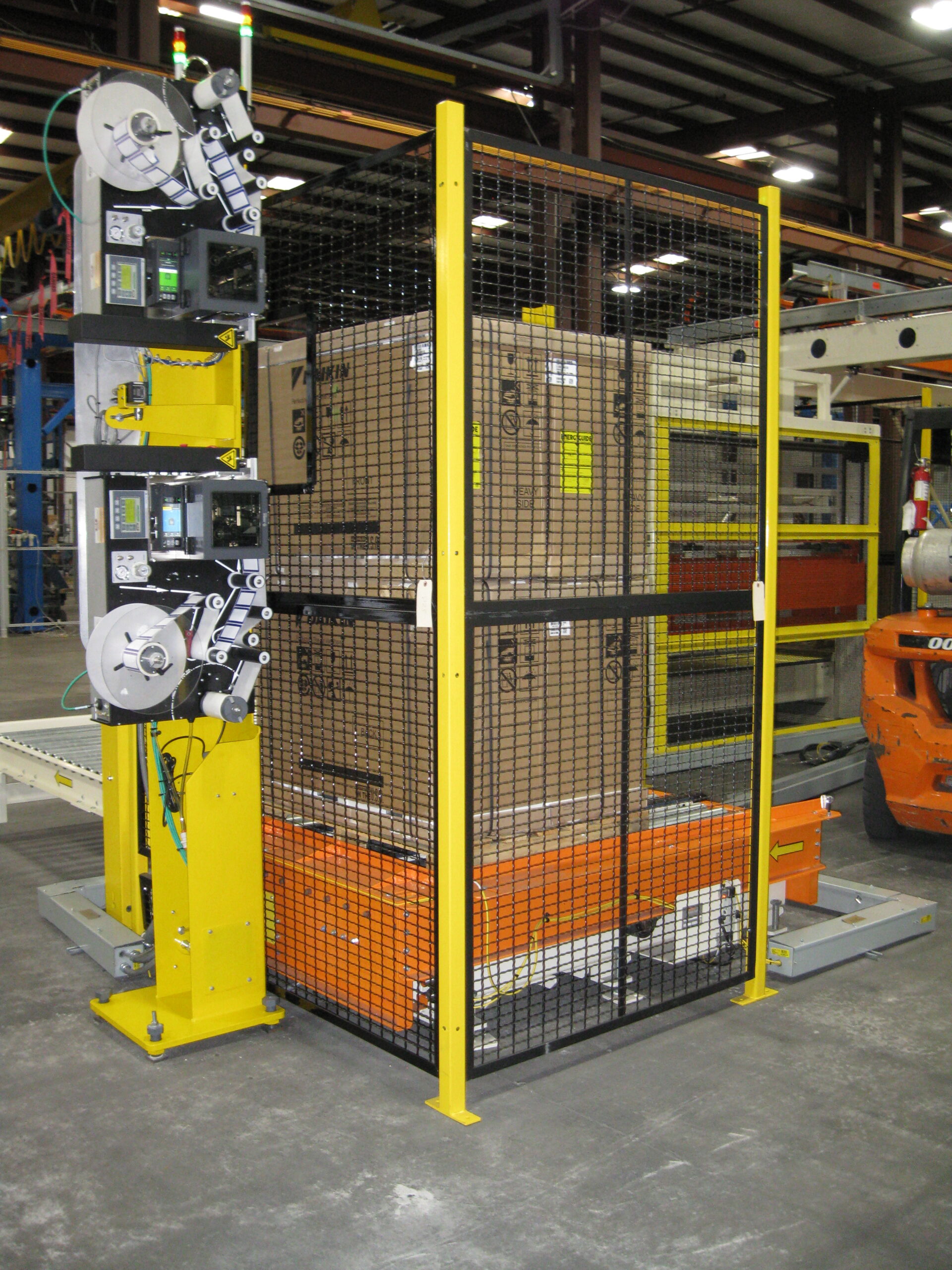

These fully-framed woven wire or welded wire mesh panels bolt to posts forming a strong, secure barrier around dangerous automated equipment. Unlike high-tech light curtains and switch mats that are subject to electrical malfunctions, these safety systems are always on guard.
WireCrafters® offers both woven and welded wire mesh machine guarding and perimeter guarding systems to protect and separate property, equipment, and personnel. WireCrafters® Machine Guarding Systems (or commonly referred to as Physical Barriers) are available in 5′, 8′, 10′ and 12′ or any height you require.
By the nature of its woven wire or welded wire design, WireCrafters® guarding systems provide an unparalleled level of safety and security. The traditional woven wire mesh machine guarding systems are constructed of a 10 GA wire, woven into a 2″ x 1″ rectangular mesh. This heavy mesh is welded inside a 1-1/4″ x 1-1/4″ x 1/8″ angle frame.
A more modern welded wire machine guarding system called RapidWireHD™ features a 10 GA welded wire design and is constructed in a 1 1/4″ x 2 1/2″ rectangular pattern. The sturdy welded mesh is surrounded by a 13 GA rolled formed angle frame. RapidWireHD™ is also available in a 2″x2″ welded mesh square pattern.
Commonly woven and welded wire mesh machine guarding systems require solid partitions to be integrated into the systems design. WireCrafters® stocks solid sheet metal in 16 GA panels as well as 1/4″ Polycarbonate panels to complete your design. Expanded metal and stainless steel panels are also available for machine guarding.
Commonly found in weld cells, robotic cells, press break equipment stations, laser cutting operation areas, metal stamping and folding areas, and punching stations, Machine Guarding, Area Guarding and Perimeter Guarding has hundreds, if not thousands of possible applications. Contact a knowledgeable dealer in your area to help define your machine guarding needs.
As the safeguarding standards for personnel and equipment continues to tighten WireCrafters® exists to mitigate the potential workplace hazards with improved machine guarding and physical barrier systems. We strive to be OSHA and ANSI/RIA compliant in all of our products.
WireCrafters® machine guarding and perimeter guarding system utilize a modular wire mesh panel design which allows for multiple combinations of standard parts to meet your specific space and guarding requirements. We offer a full line of special colors and accessories such as hinged doors, sliding doors, lift out panels and locking latches to integrate with your machine guarding system.
The welded wire’s straight lines and inherent strength of either the woven or welded wire provide a strong, modern looking guard to complement your facility and equipment. WireCrafters® stocks a variety of meshes to meet requirements for heavy, medium, or light duty jobs.
WireCrafters® can tailor-make a guarding system that meets your rigorous safety standards.
RapidWire HD™, with its modular design, can be installed in 20% to 25% less time when compared to competing products. RapidWire HD™ is simple to plan, and easy to install.
